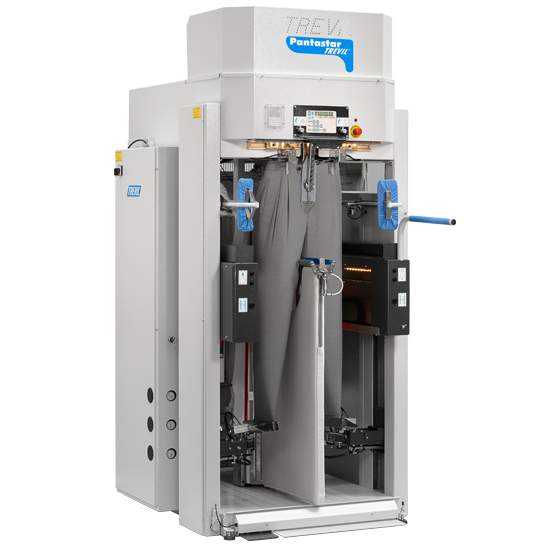

PANTASTAR Pantomime Mannequin

PANTASTAR is the first automatic machine that provides complete finishing of trousers: ironing the upper (waist) part of the trousers like a topper and ironing the trousers like an ironing press.

Until now, to ensure high quality with high productivity, it has been necessary to use two separate machines: a trouser topper and an arrow press.

Now thanks to PANTASTAR:

• Two bulky machines are no longer required.;
• There is no need to remove the trousers from the topper, prepare them, hang them out, and then transfer them to a second machine for smoothing the arrows.;
• The use of specialized ironing presses is not required.

Compared to other equipment, PANTASTAR stands out for its patented system. TreviXpand, which:

1. How does the topper iron the top of the trousers when worn in a round shape, while providing higher quality compared to traditional ironing machines that process the top of the trousers when already folded;

2. It automatically folds trousers, preparing them for subsequent pressing, without the need to transfer them to another machine or perform any other operations with the waistband.

Moreover, during the processing phase on the topper, the system TreviXpand It allows you to adjust the shape of the belt depending on the type of trousers (flat for jeans and round for classic trousers).

THREE OPERATING MODES:

1. Complete finishing (of the upper part of the trousers and the arrows).
2. Only a mannequin (for processing trousers without arrows).
3. Only the press for smoothing the arrows.

PROCESSING OF ALL TYPES OF TROUSERS:

• Women's and men's trousers range in waist size from 65 to 110 cm and in length from 80 to 140 cm
• All types of fabrics, including corduroy, synthetic fabrics and spandex
• In the "paromaneken only" mode, it can also be used to process trousers without arrows.

technical specifications

1. Electronic control of the processing cycle.
2. Electronic boost force adjustment.
3. Adjusting the presser of the ironing press for processing the lower parts of trousers (required in the case of pile textiles, for example, corduroy trousers).
4. Belt shape adjustment (flat for jeans and sweatpants, round for classic trousers).
5. The function of protection against stretching of the belt and trousers, preventing the deformation of products made of delicate fabrics.
6. An electronic control system that stores up to 9 programs for various types of trousers and fabrics.
7. Automatic shoulder blades for back pockets.
8. The "Dummy only" function is for processing trousers without arrows.
9. Productivity: 30 pcs/hour with one operator and one machine.
