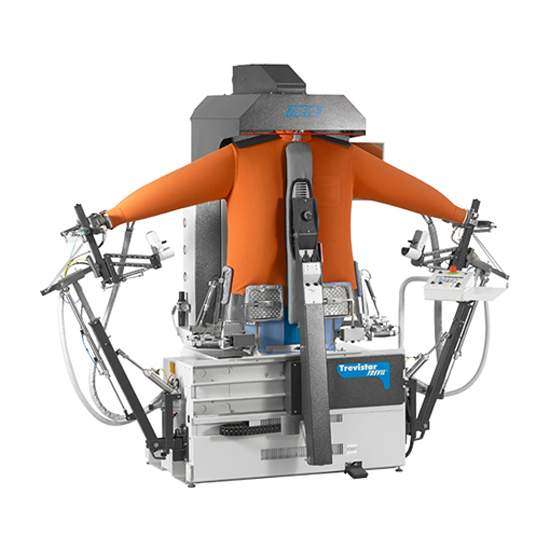

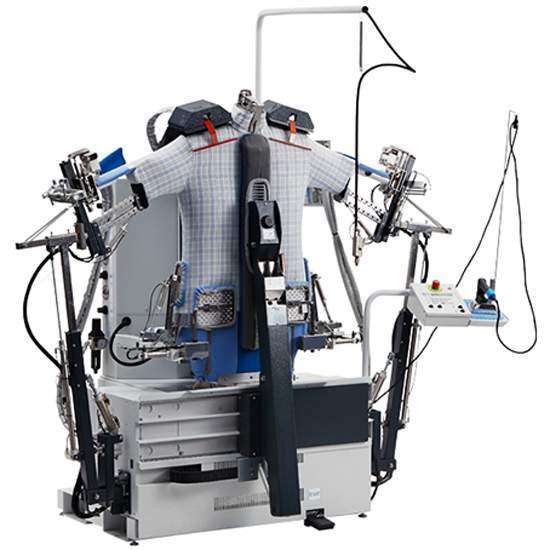

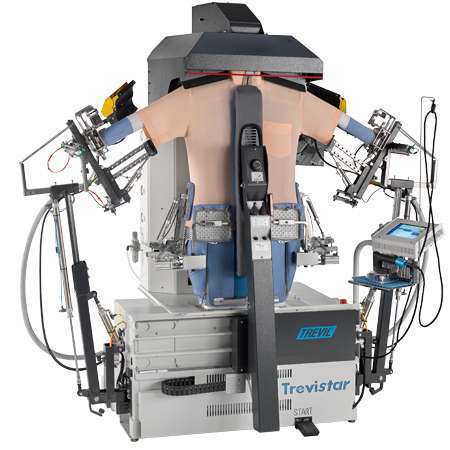

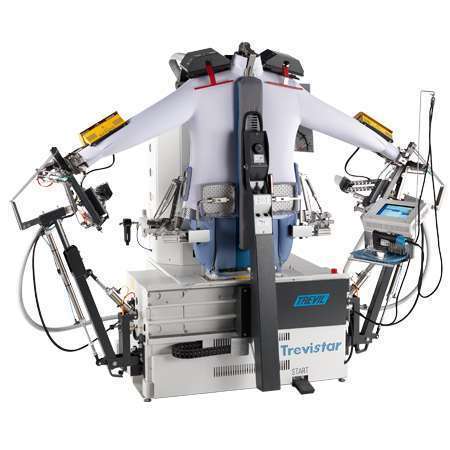

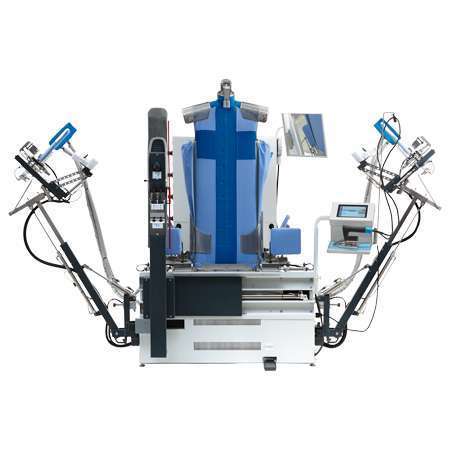

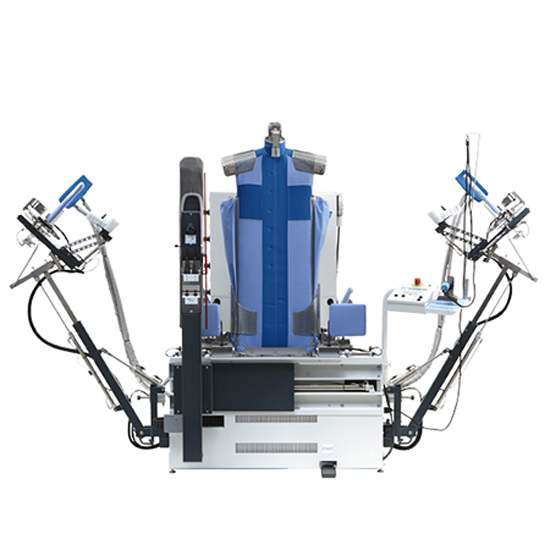

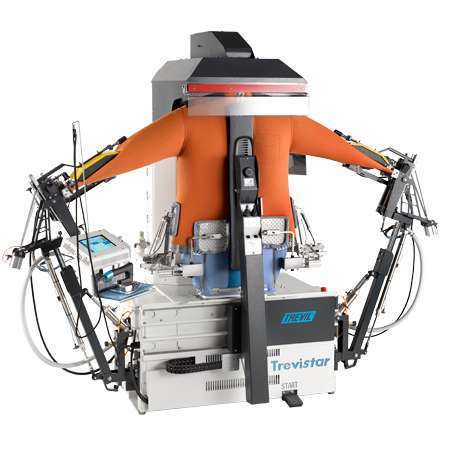

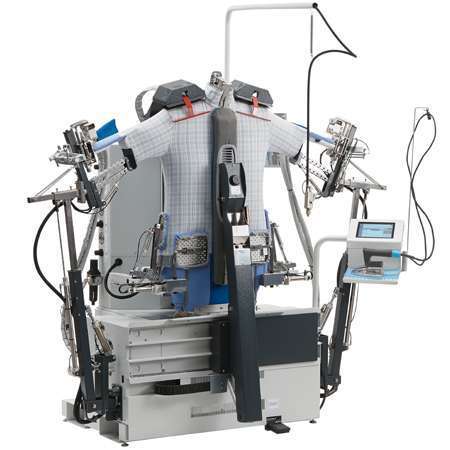

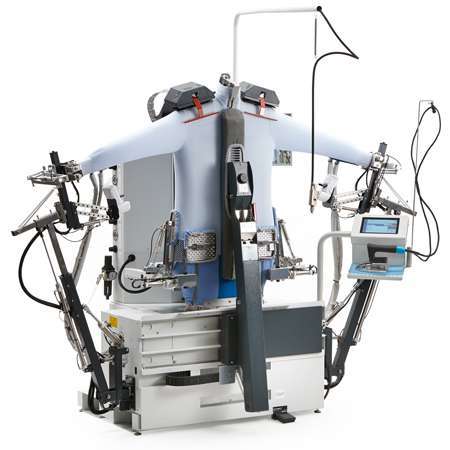

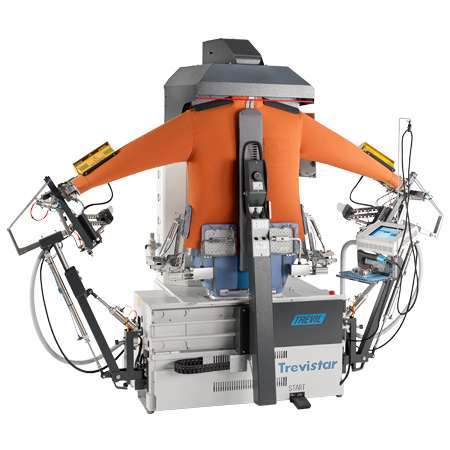

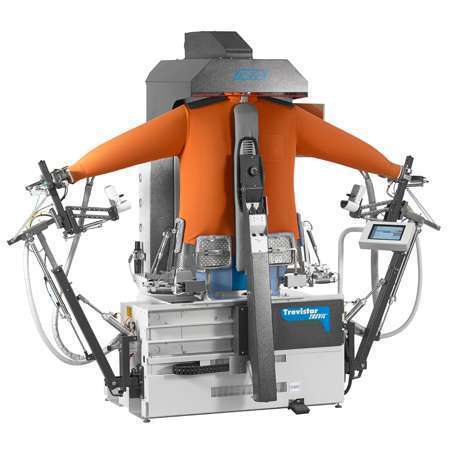

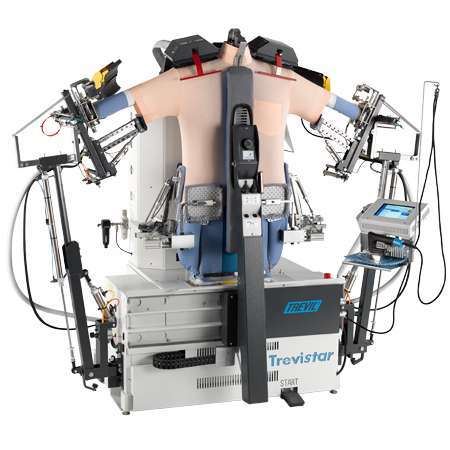

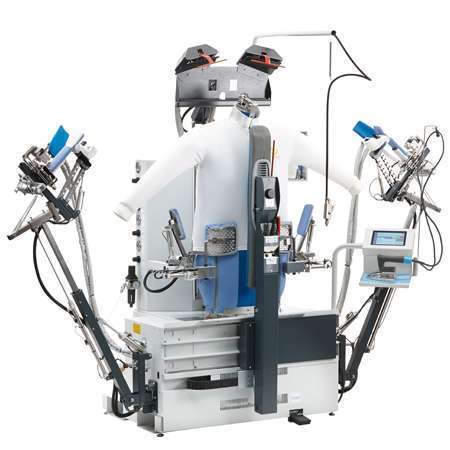

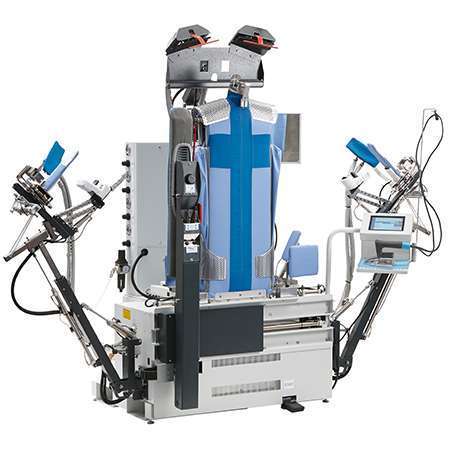

The TREVISTAR Magpie Mannequin
Models/articles: 5256, 5257, 5252E, 5254E
Trevistar mannequins are perfection itself — the quality of manual ironing of shirts is ensured in just 50 seconds.
The Trevistar series equipment has been manufactured since 2000. Thanks to many years of experience and fruitful cooperation with all our customers, we have significantly improved the quality and speed of the machines, which are now able to provide a great appearance to any shirt with a processing cycle duration of no more than 50 seconds.
Now available for sale: Trevistar in all-electric version
- Easy installation and maintenance
- Built-in base for moving using a forklift truck without using a pallet.
- All serviced electrical and pneumatic components are located in one place behind the housing panel.
-
Main Features

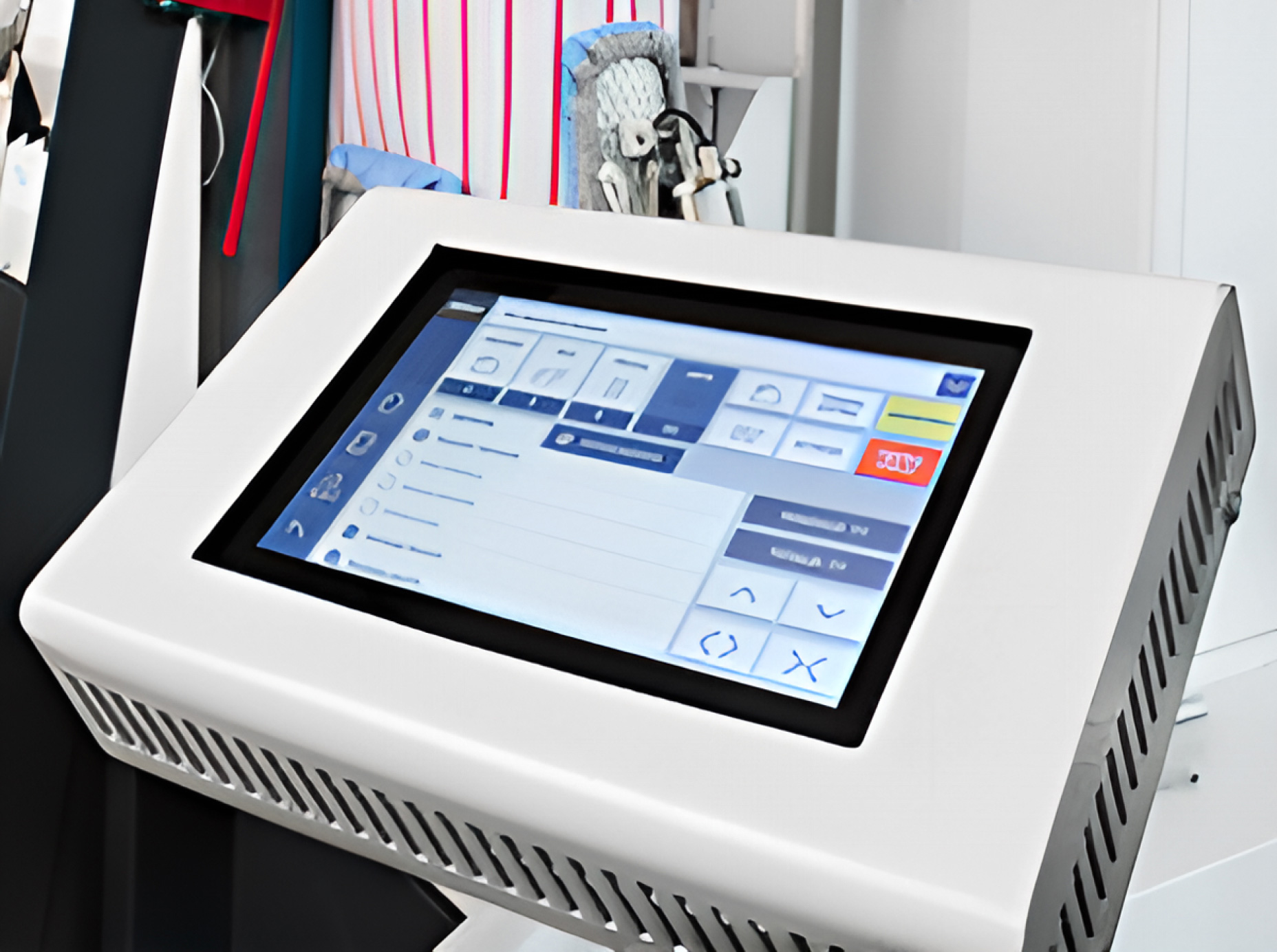

New Trevi-touch touch screen
- Electronic control of all tension mechanisms with the possibility of their precise adjustment according to the type of processed material: from dense cotton to elastic fabrics.
- Unlimited number of user programs
- The ability to translate into any language
- Simple graphical interface
- Password-protected programming
- Integrated maintenance and troubleshooting software

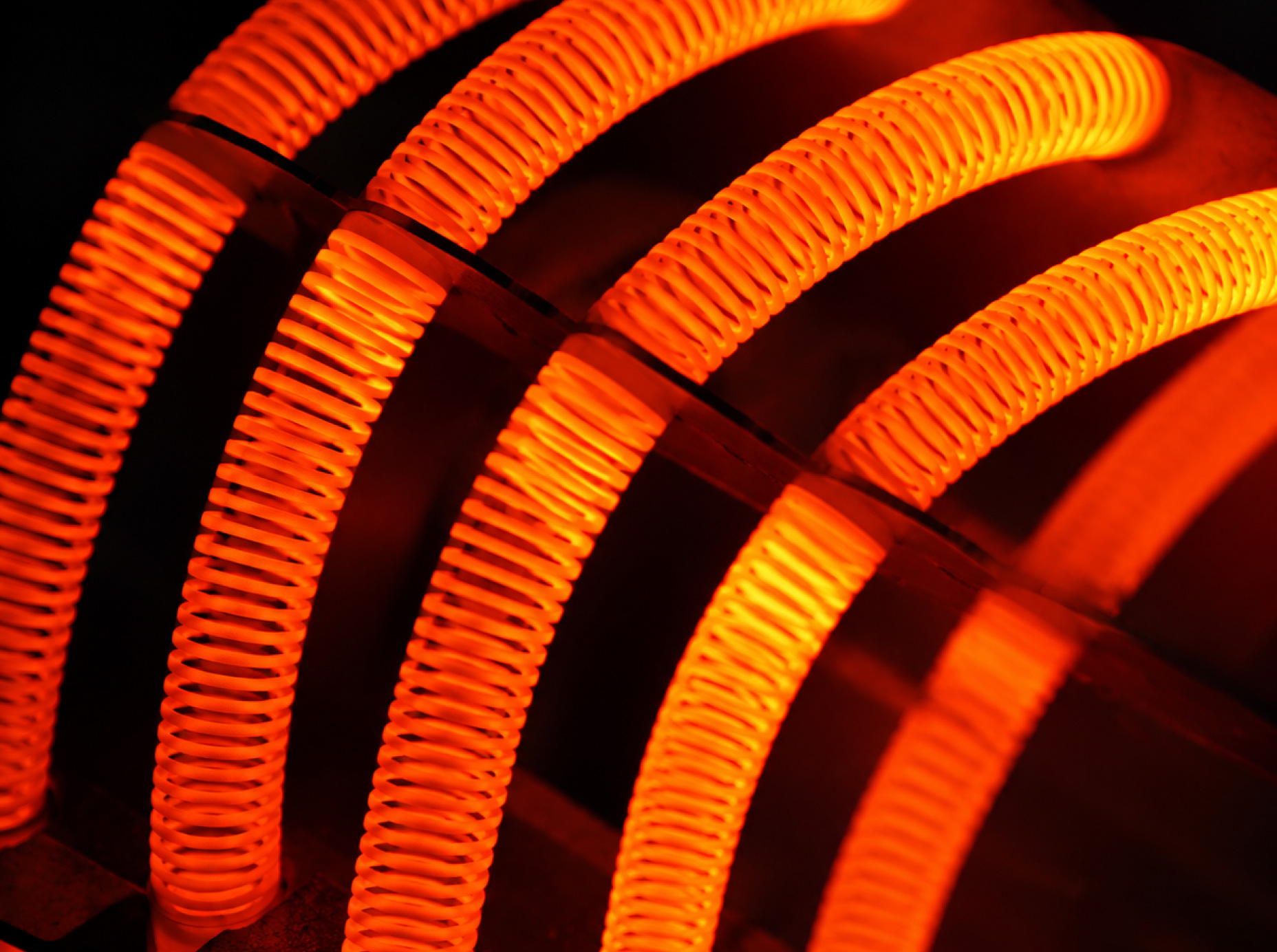

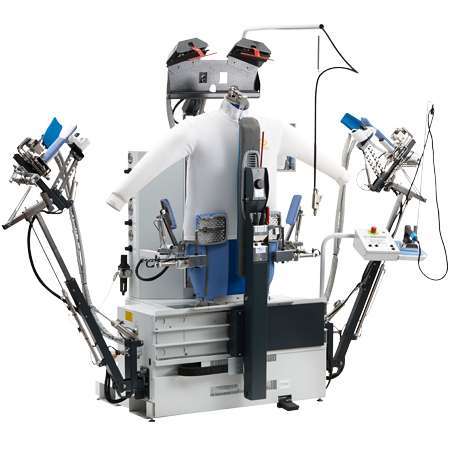

An electric version is available
The electric equipment, equipped with an 18 kW rechargeable battery and the Trevil electronic control panel, ensures consistently high quality and performance, thanks to which the Trevistar series is a recognized world leader in the field of shirt ironing.

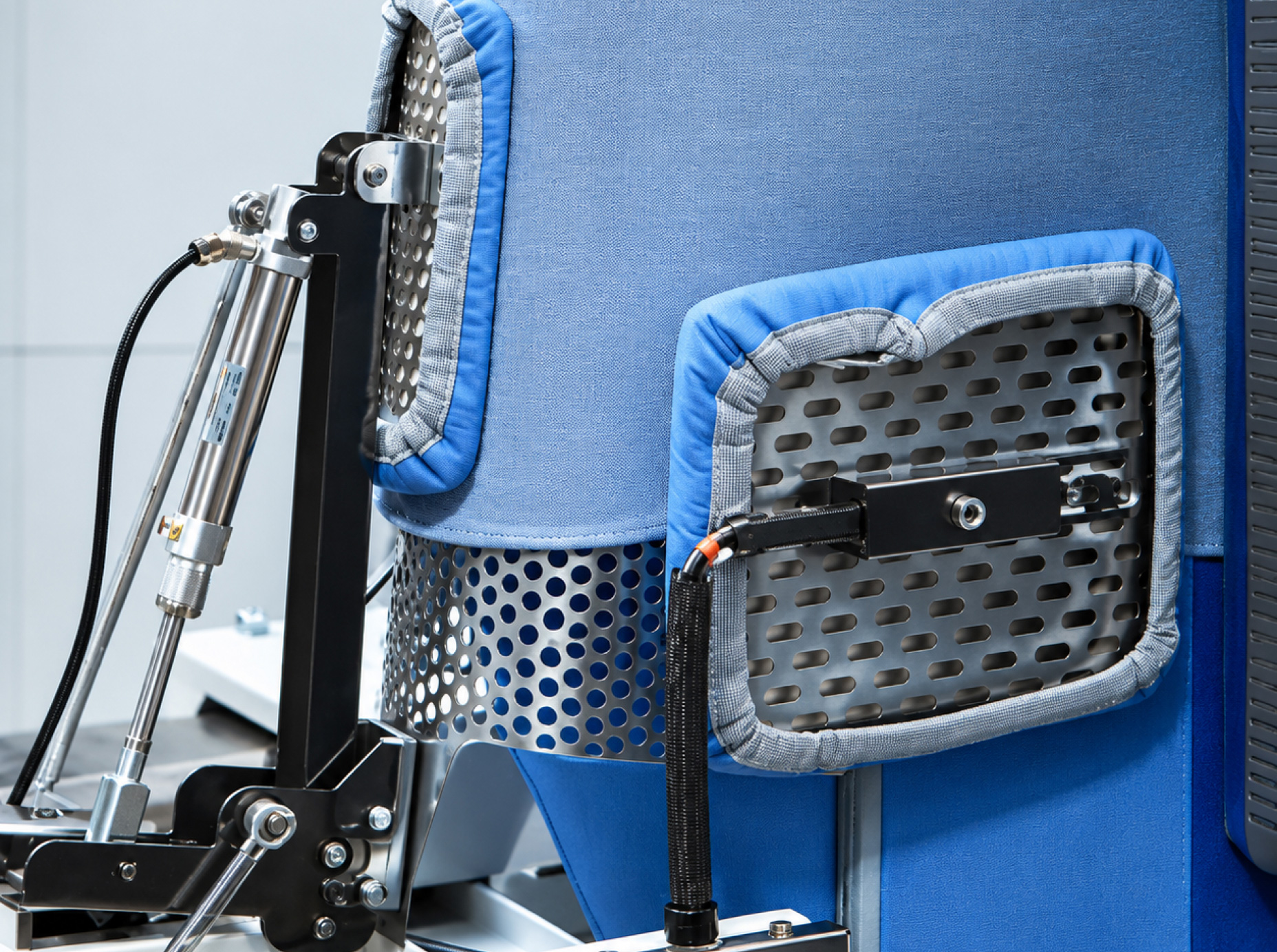

Side expanders with anti-stretching system
The expanders are equipped with a sensor that automatically detects the size of the shirt and prevents excessive stretching of the material. The tensile force of the expanders can be adjusted or completely canceled, for example, in the case of processing products made of stretch fabric.

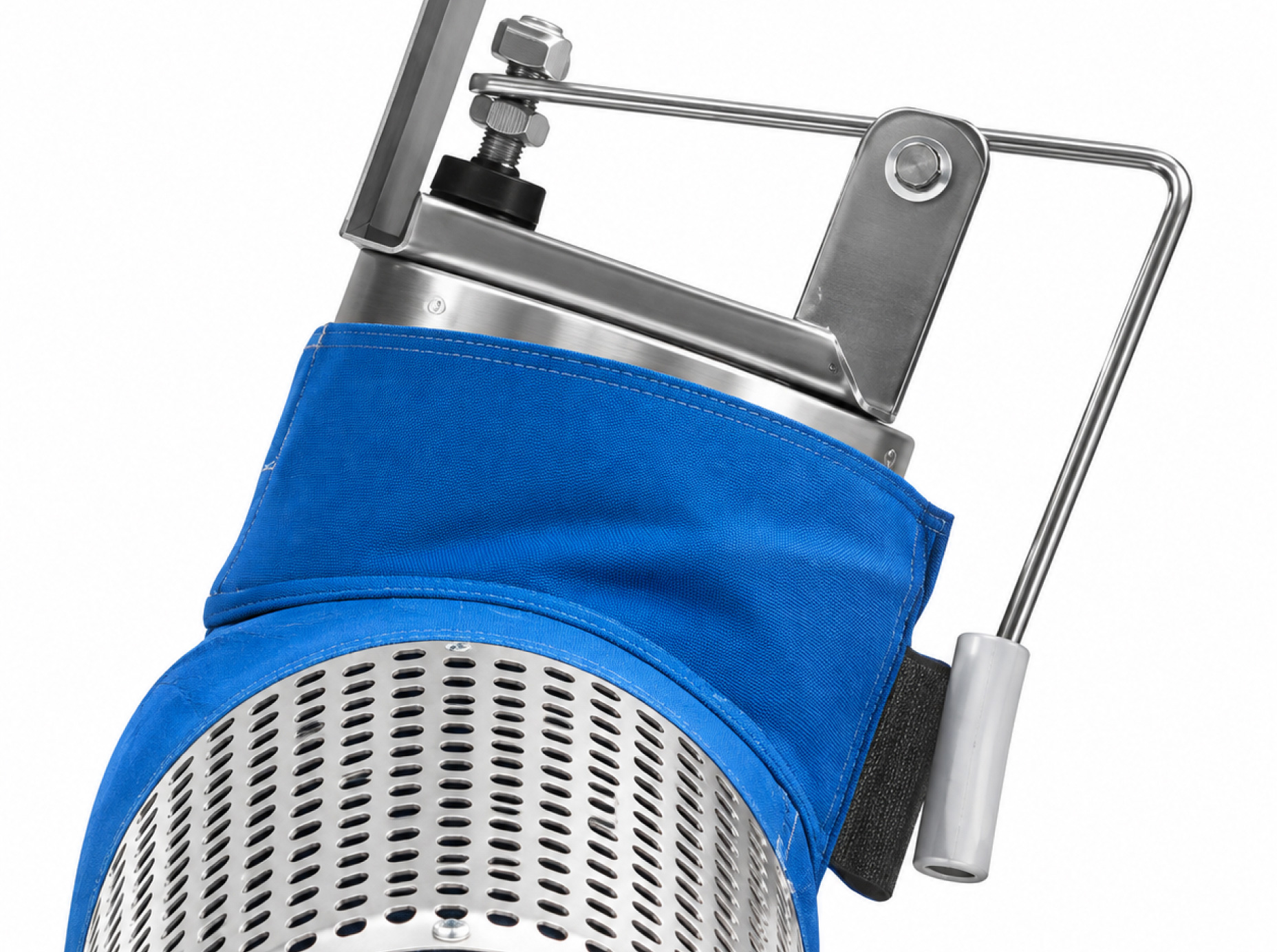

Pneumatic collar clip
The shape of the collar clip is designed in such a way that it is easy to put closed garments on top of the mannequin, for example, polo shirts.

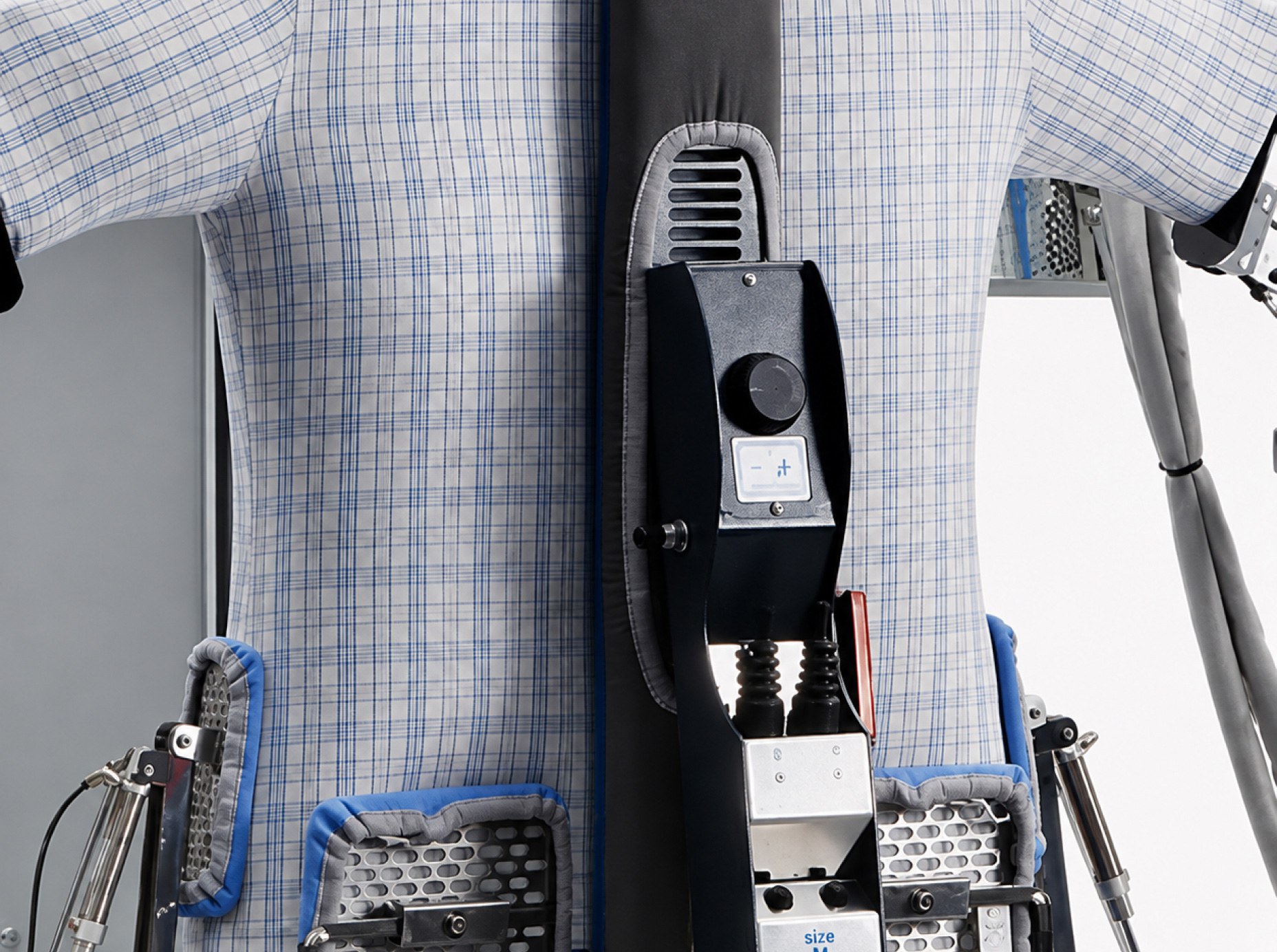

Heated front clamp with temperature control
The front clip ensures that the front strap is held and handled without damaging the buttons. The temperature of the clamp can be adjusted.
For better ergonomics, the controls that are used during the machining cycle are integrated directly into the clamp.

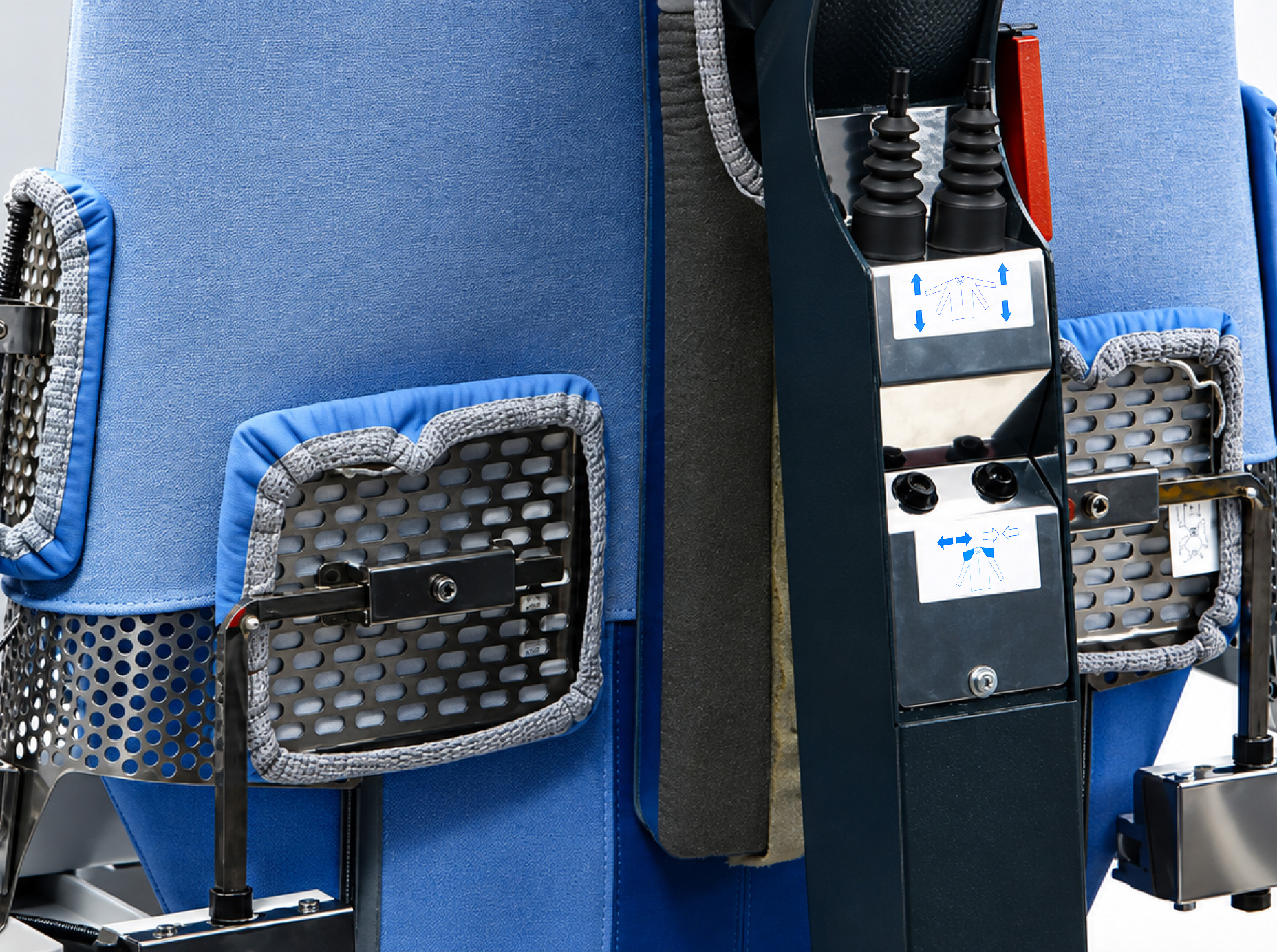

Vertical tension system with 5 clamps
The tension carriage is equipped with five clips that ensure uniform finishing of the bottom edge. The tensile force created by the clamps can be adjusted or completely canceled, for example, in the case of processing products made of delicate materials.

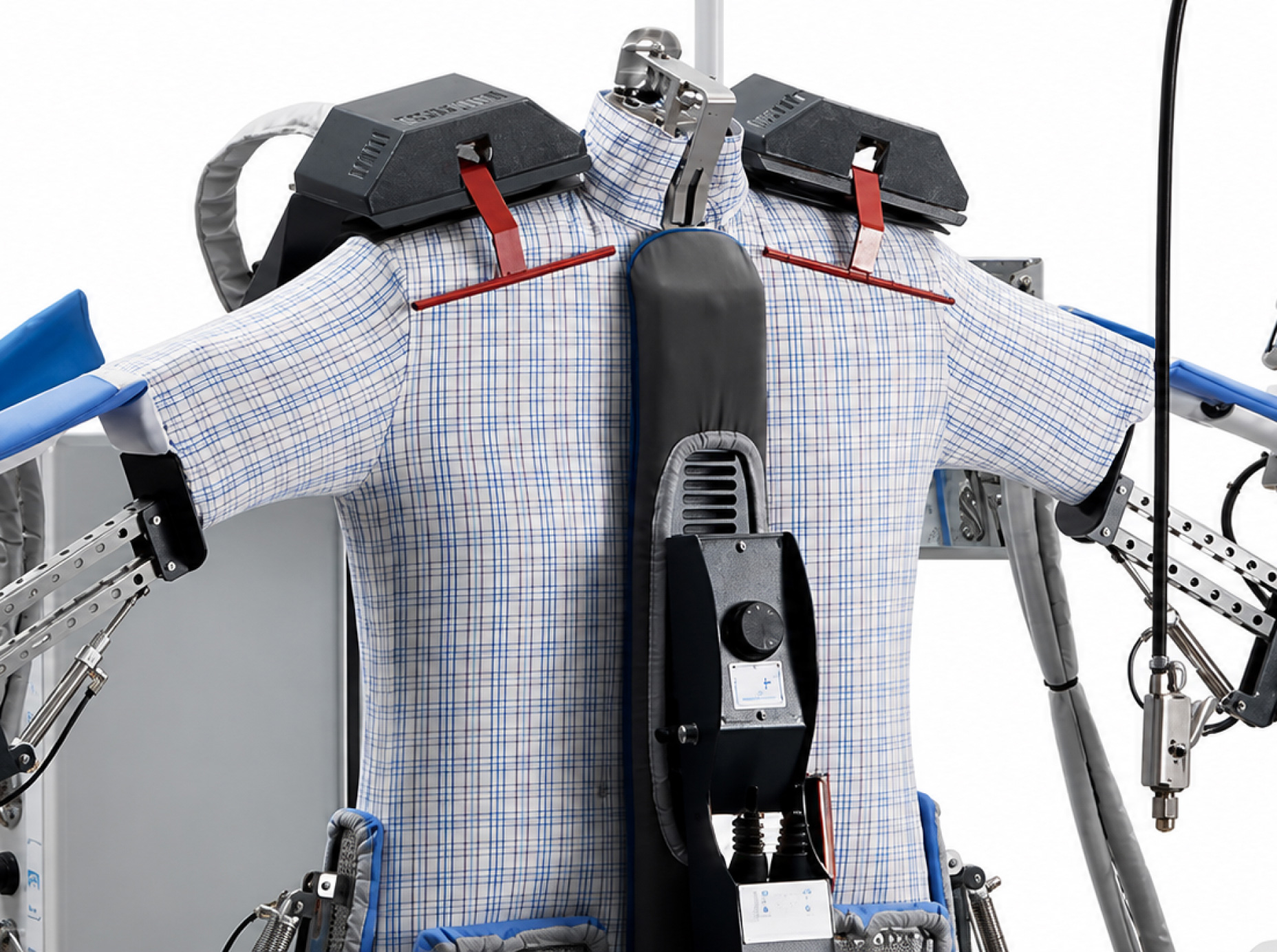

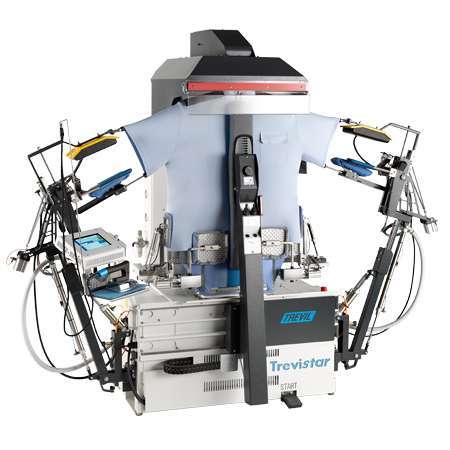

Pneumatic device for processing products with short sleeves
When the control panel selects a program for processing products with short sleeves, the machine automatically switches to the appropriate mode.

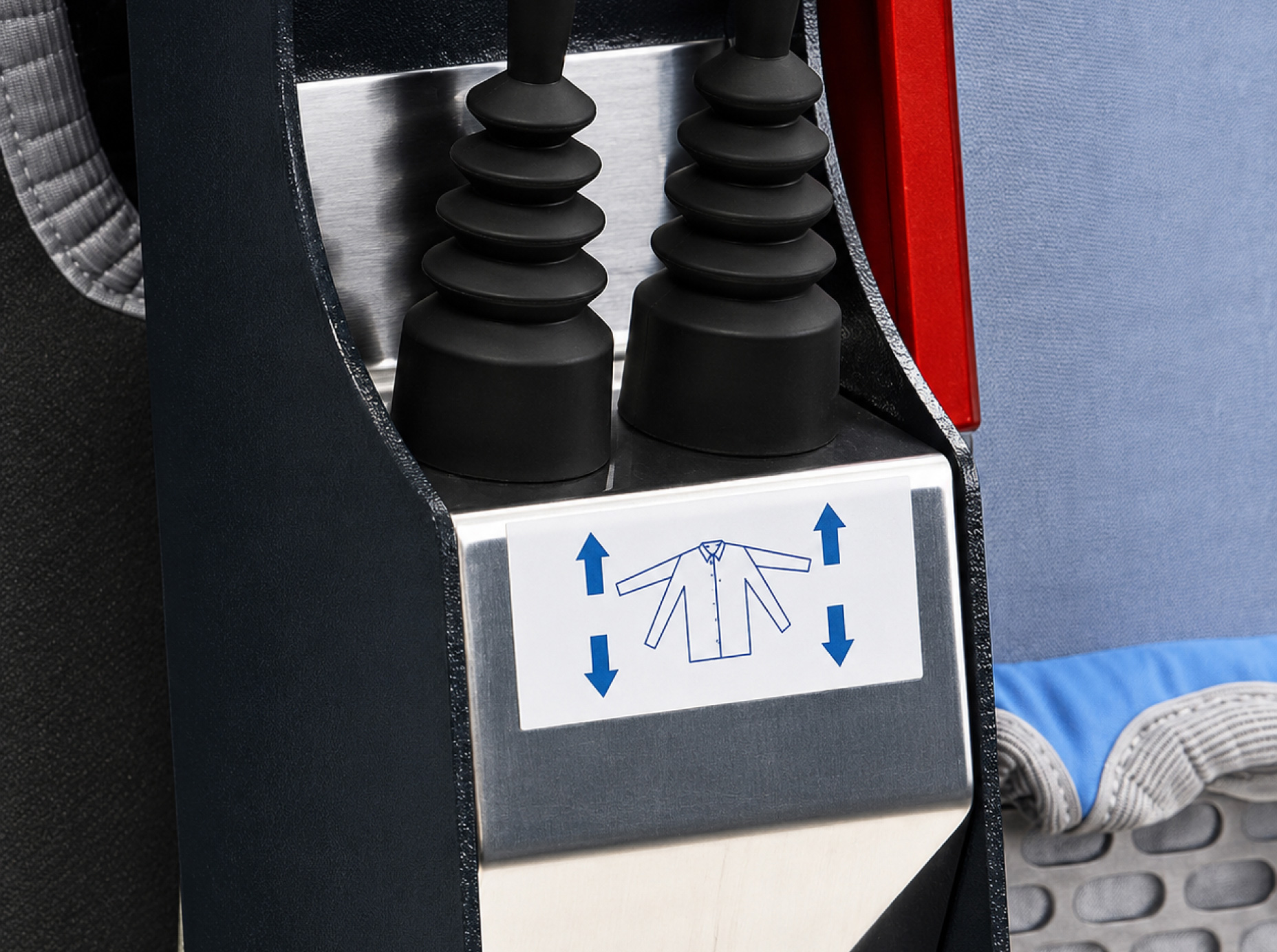

Height adjustment of pneumatic cuff clips
The height of the cuff clips is conveniently adjusted using the joysticks on the front clip.

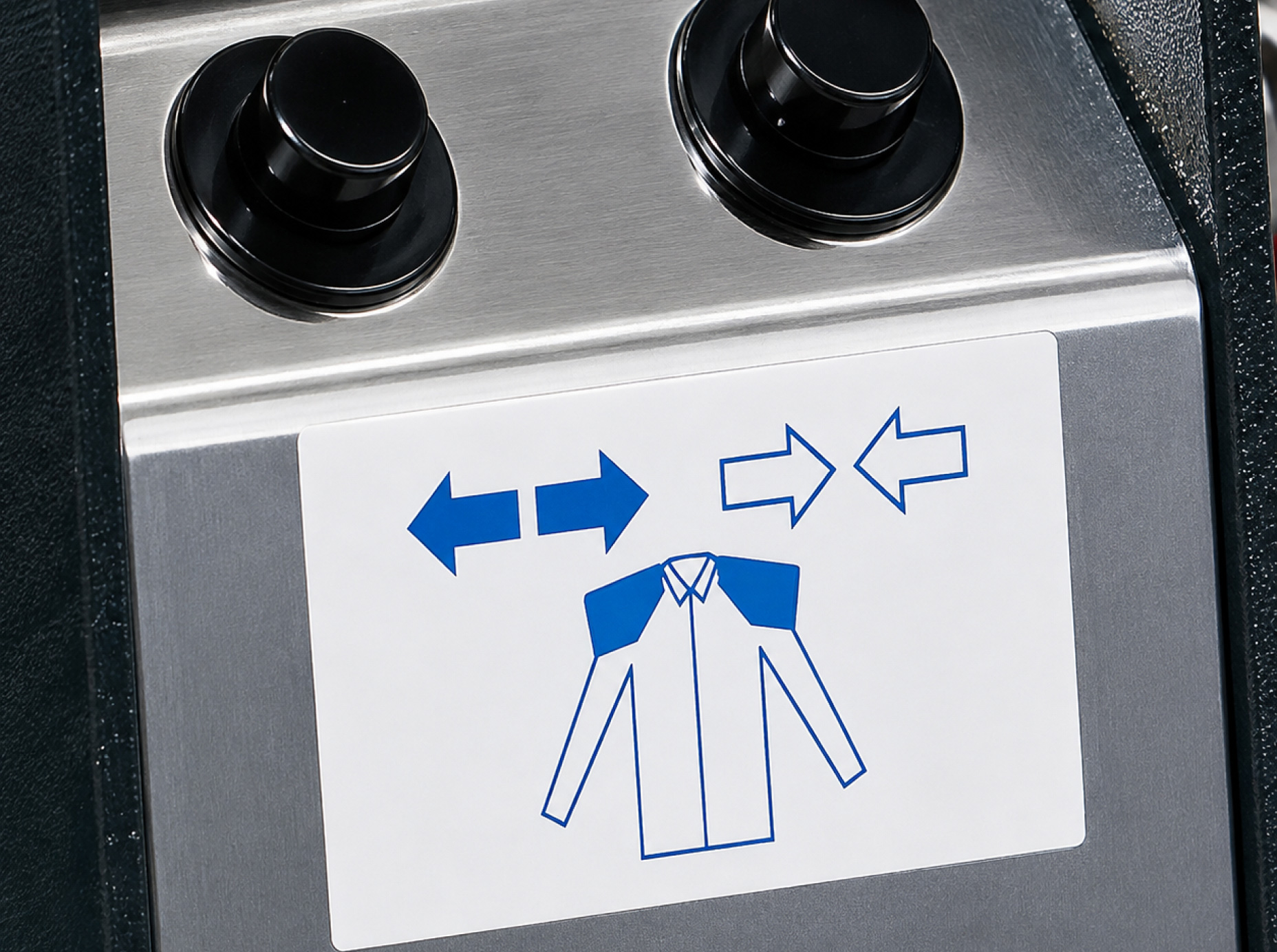

Pneumatic shoulder width adjustment device
The height of the cuff clips is conveniently adjusted using the joysticks on the front clip.

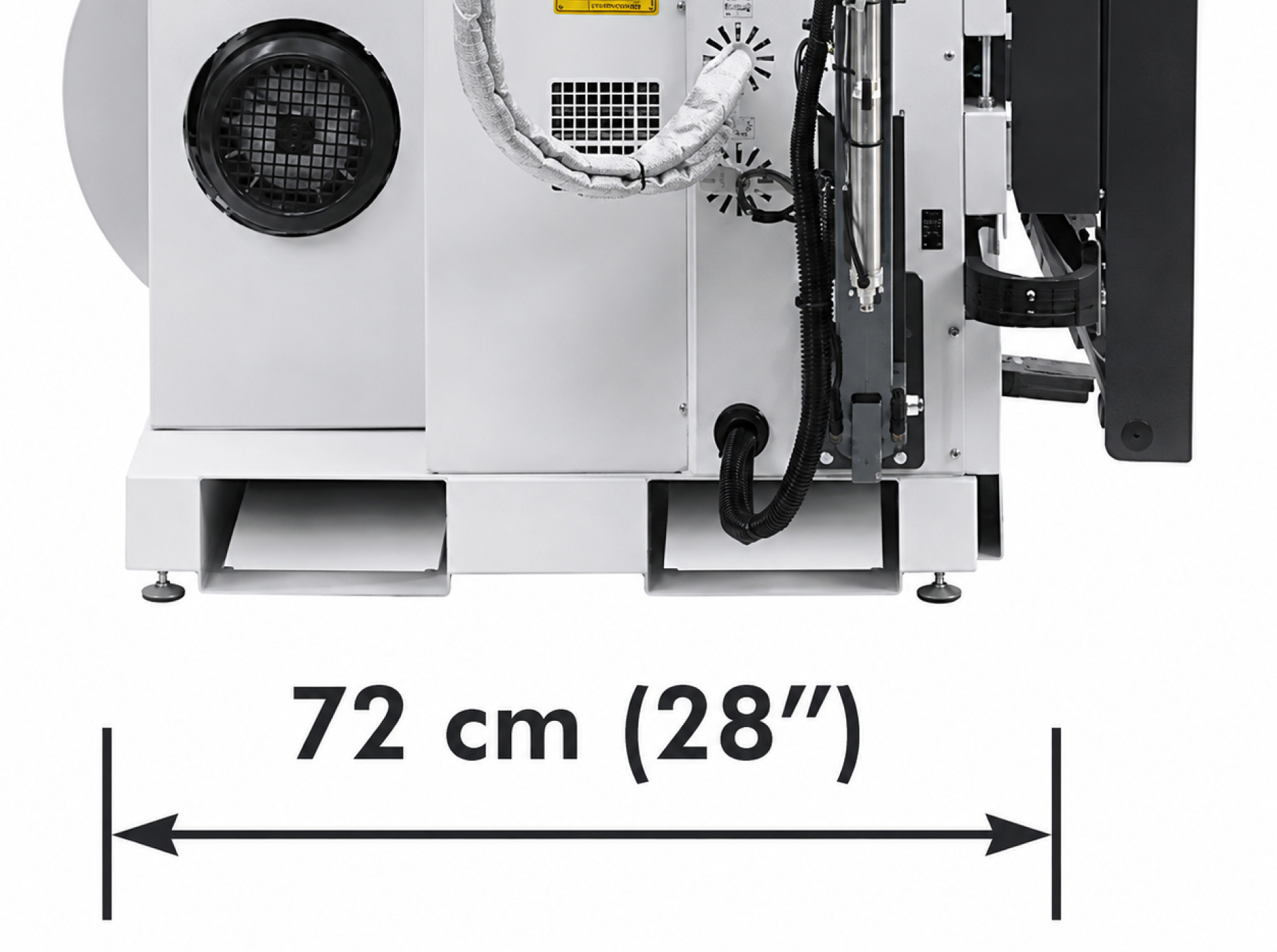

Compact design
The installation requires an area of only 0.76 m2, which makes the Trevistar ferry the most compact equipment in its category.
This design allows you to move this machine through doors with an opening width of only 90 cm.

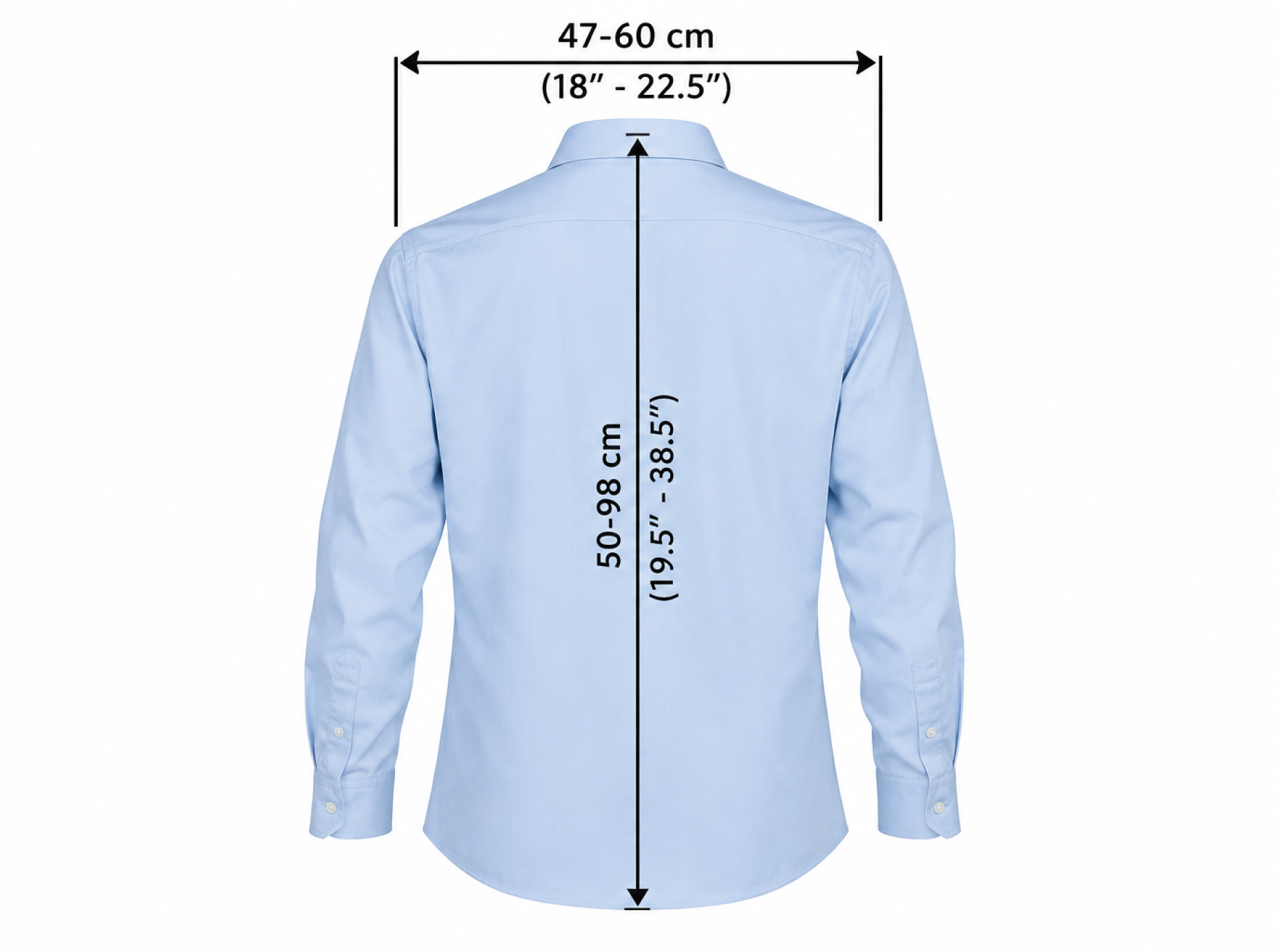

Shirt processing in a wide range of sizes
The Trevistar mannequin provides finishing of clothes in a wide range of sizes.
The doll is available in two sizes: regular and narrow.
Shoulder width adjustment range:
- Regular doll: from 47 to 60 cm
- Narrow doll: from 42 to 55 cm

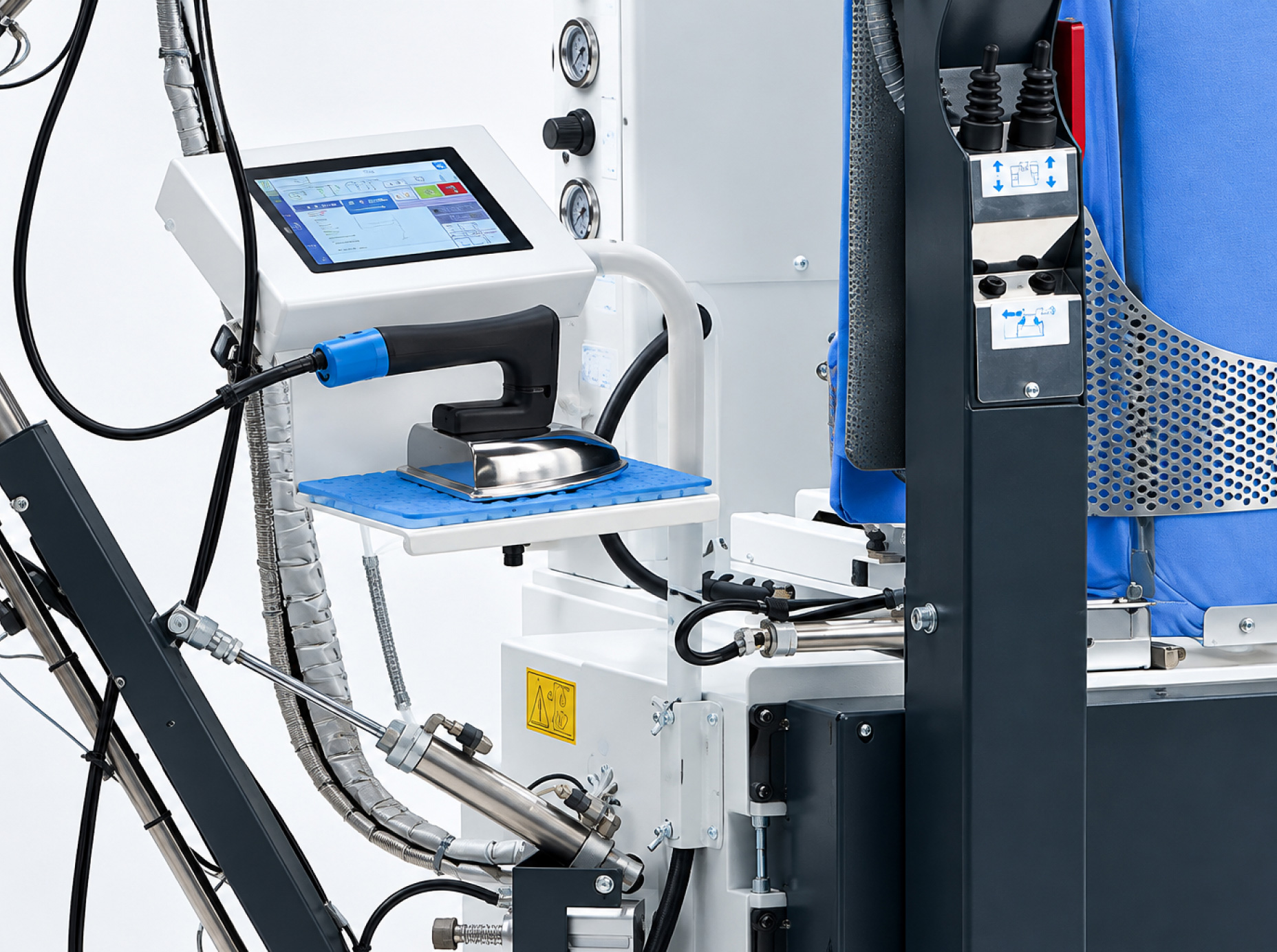

The ability to change the side of the control panel location
The control panel can be located on both the right and left sides of the control cabinet, depending on the position of the press for cuffs and collar.

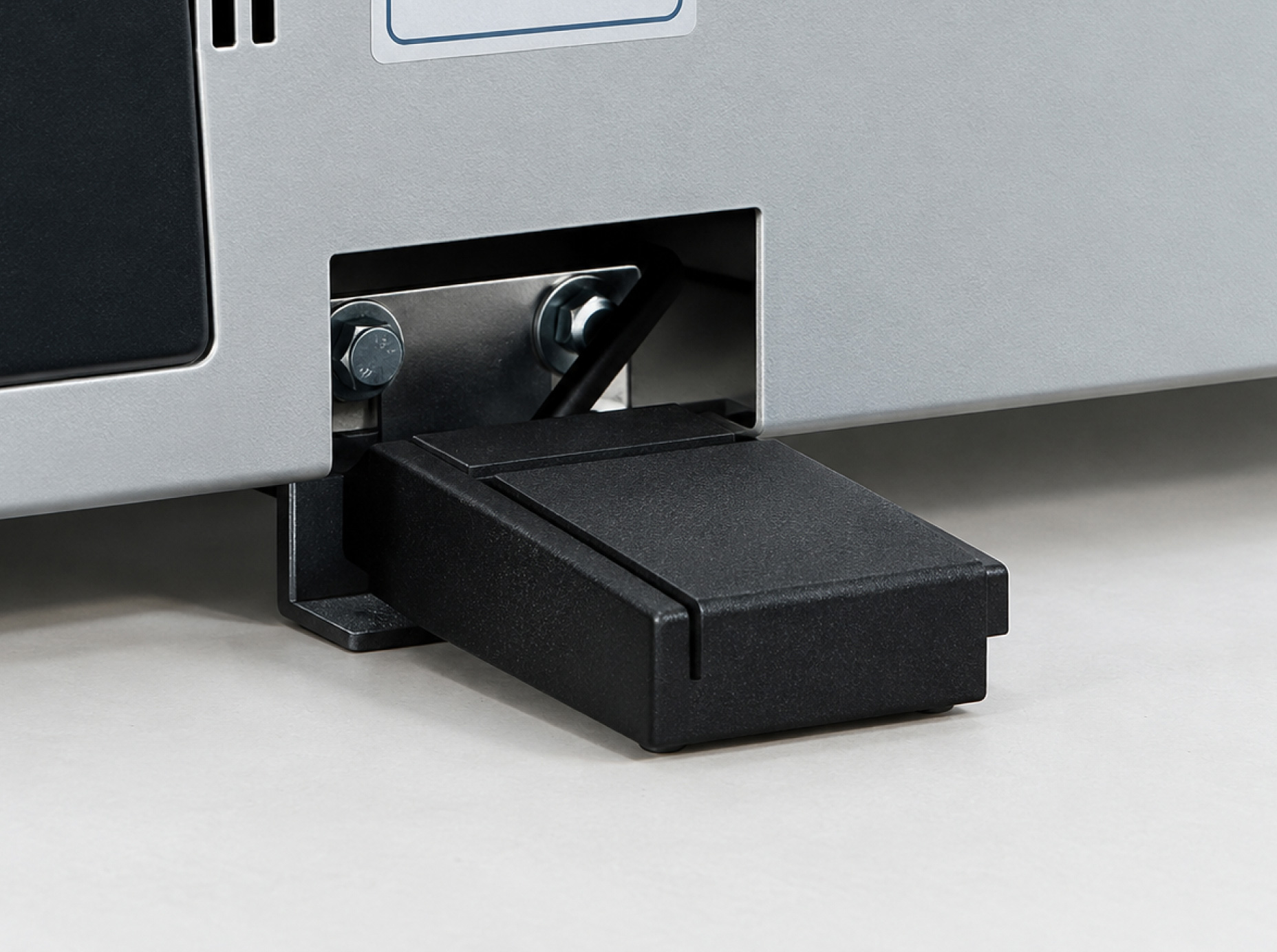

Single pedal control
Additional equipment
Devices for drying shoulder areas

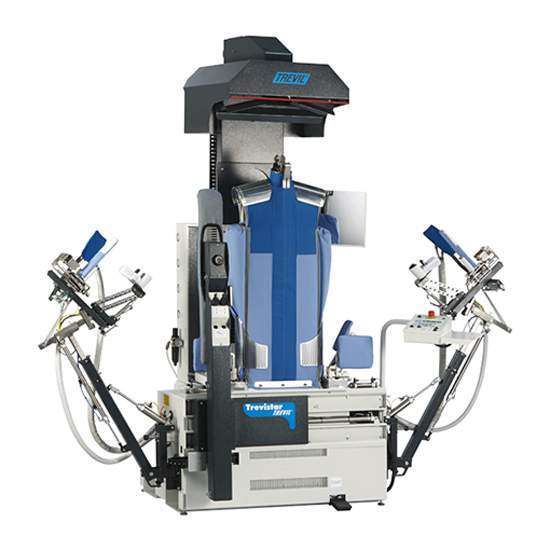

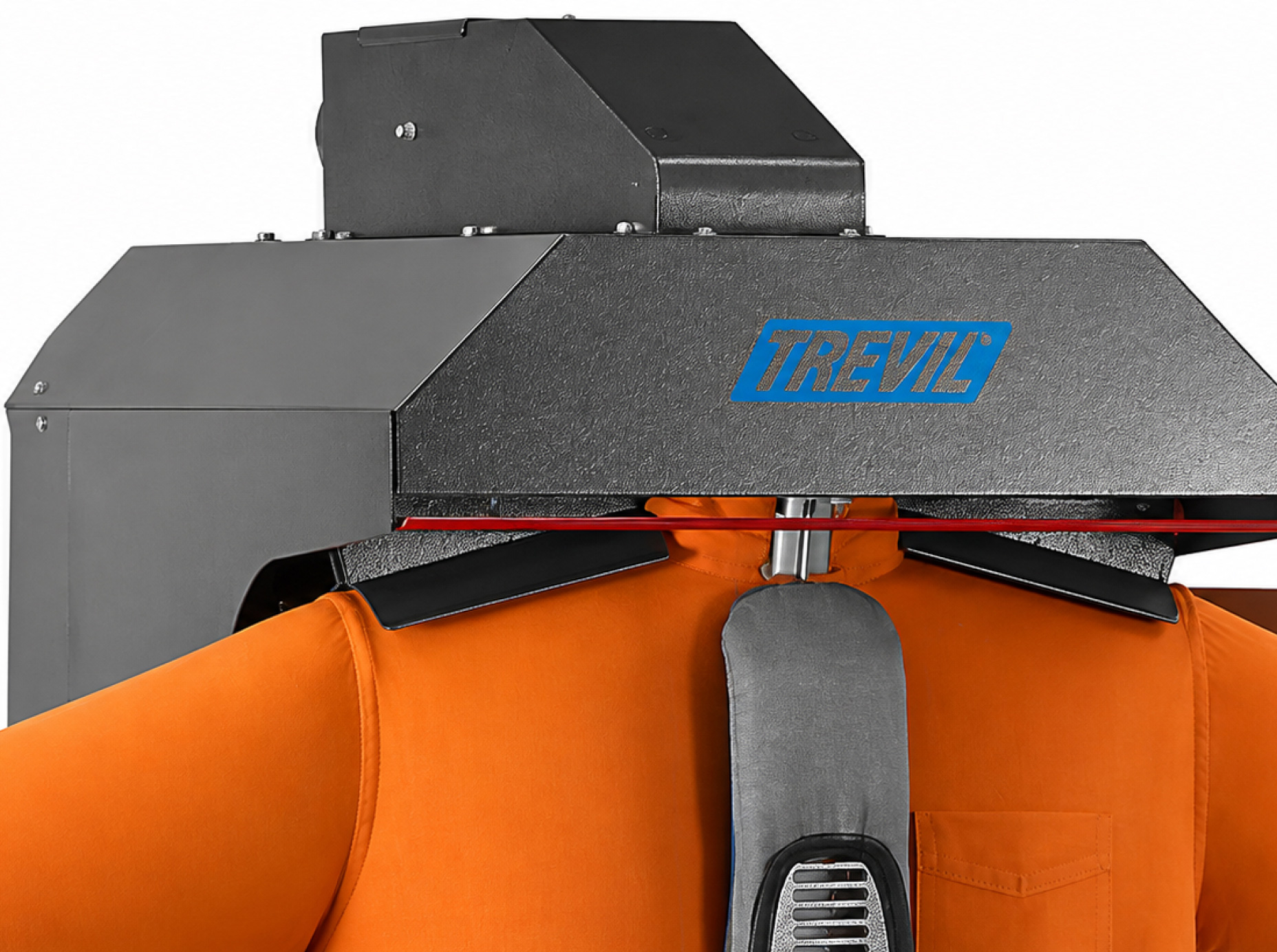

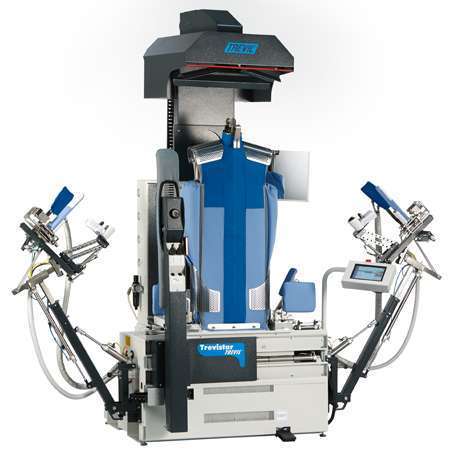

Air intake hood
Using this device allows you to reduce operating costs by reducing the drying time and reducing steam consumption.
During its operation, the hot air coming from the mannequin doll is redirected for additional treatment of critical areas of the shirt: the seams of the shoulder area and the yoke. Finishing is carried out in a soft mode and does not lead to the formation of jams, since there is no contact of metal parts with the fabric. The width of the shoulders can be adjusted during operation of the air intake hood.
At the end of the drying process, the hot air is automatically discharged to the outside, which creates a more comfortable environment for the working staff.

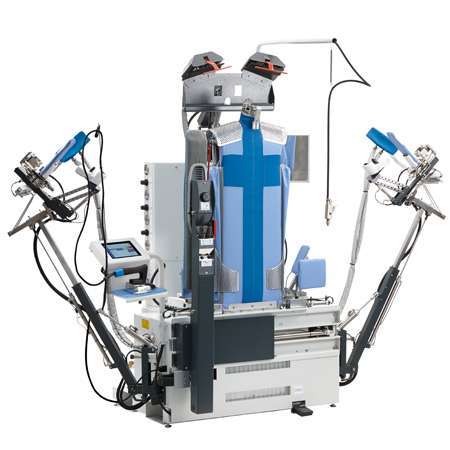

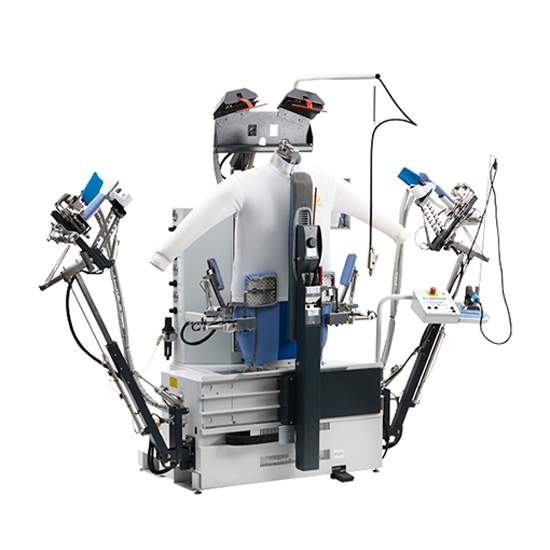

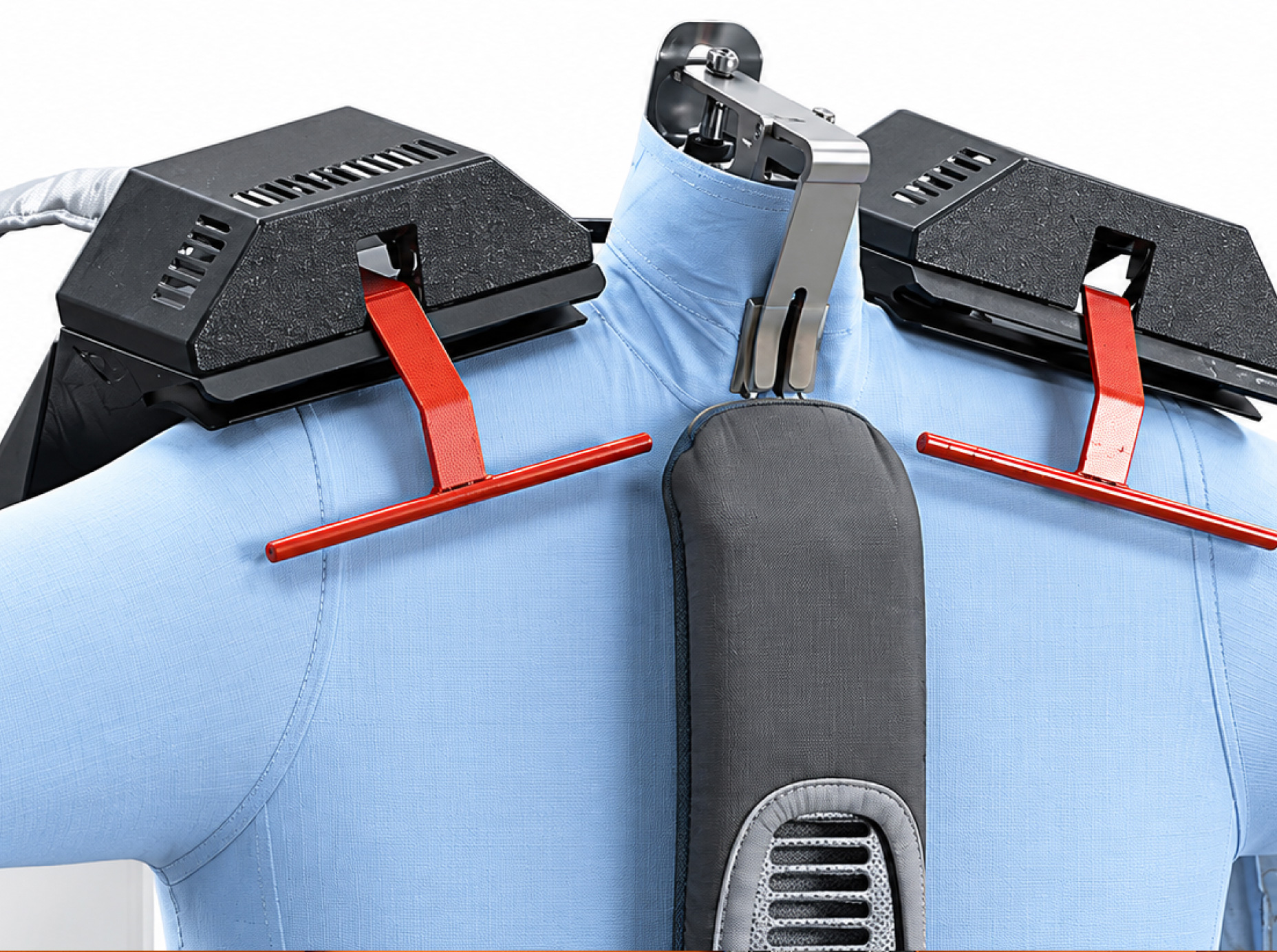

Pressing and drying system for the yoke area
The use of a shoulder module allows you to speed up the drying of the shoulder area and the yoke. Unlike competitors' devices, this system does not represent a solid, polished head, therefore it does not lead to the formation of gloss on dark tones and allows adjusting the width of shoulder expanders, which prevents the formation of jams in the armhole area during finishing.
The impact of the presses combined with the high air temperature (about 90 °C) ensures a flawless finish in just 40-45 seconds.
Devices for finishing slats

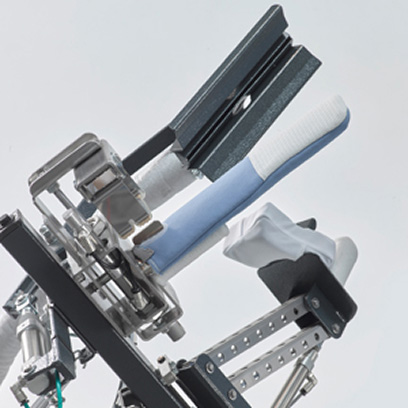

Dryers for slats of sleeves

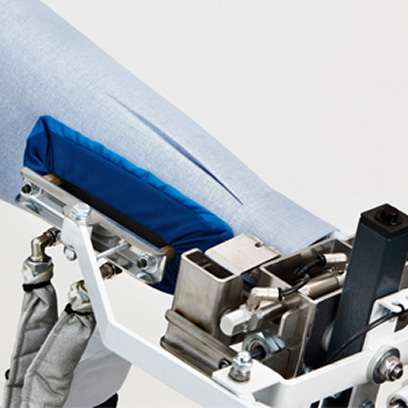

Presses for slats of sleeves

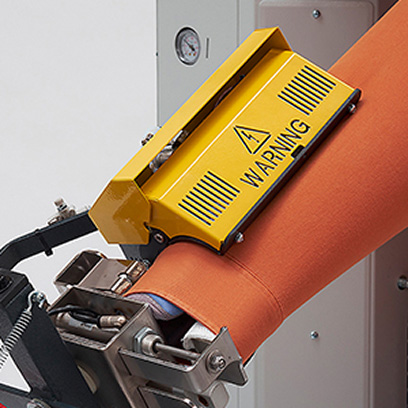

Presses for folds and slats

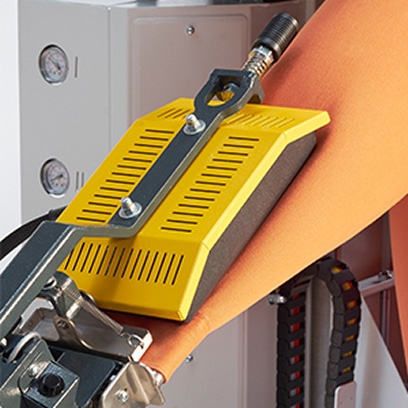

Flat presses for folds and slats

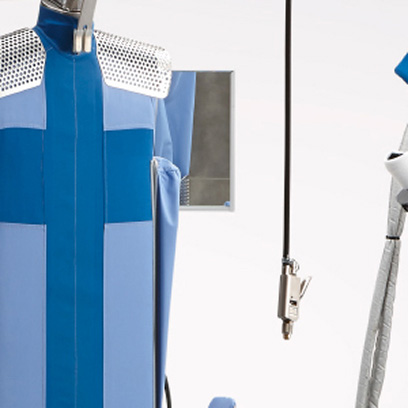

Spray gun

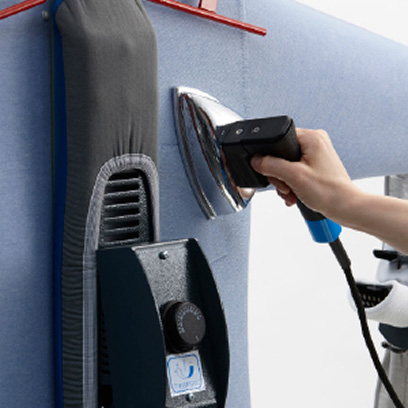

Special Electric Ironing Iron (F015)

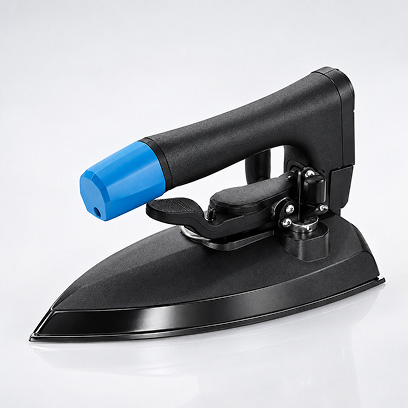

Steam Iron (ZF18)

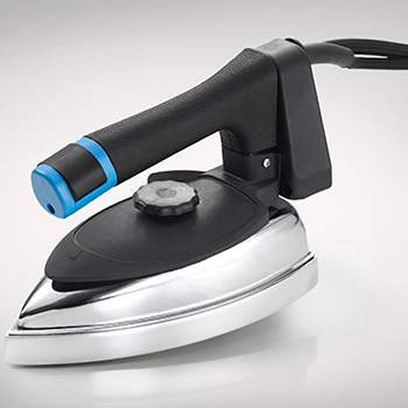

Electric Steam Iron (F022)

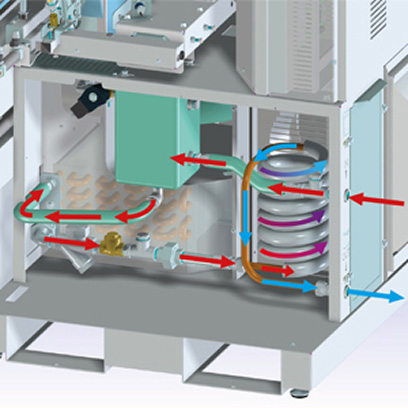

Economizer

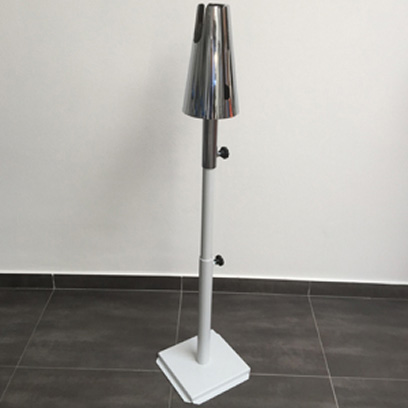

The cone for the collarTechnical specifications
Parameters 5256 – 5257 5252E – 5254E Power Supply Parameters: 400 V, 3 F.+ N, 50 Hz 400 V, 3 F.+ N, 50 Hz Power consumption: 3.7 kW 22 kW Sizes: 265 x 99 x 170 cm 265 x 99 x 170 cm Net weight: 273 kg 273 kg -
