The HSK series
Sprung machines with high-speed spin loading of 18, 25 and 40 kg.
-
REALSTAR HSK machines are high—tech dry cleaning equipment. The series features three models designed for small, medium and large loads.:
- HSK 340 — 18 kg,
- HSK 500 — 25 kg,
- HSK 800 — 40 kg.
These are sprung machines with a high spin speed of 300-700/800 revolutions per minute. They have a shock absorption system that dampens vibrations and vibrations during operation. They can be installed on a regular concrete floor and do not require rigid fastening. This is one of the best solutions for consumer service enterprises.
The equipment is designed to run on Class III A solvents. They are suitable for processing any textile products, including delicate fabrics. They provide gentle cleaning, remove complex impurities, but do not affect the consumer properties of clothing and underwear. Alternative solvents:
- minimize damage to the fibers of materials during machine processing,
- they do not leave an unpleasant odor on things after dry cleaning.,
- they reduce the creasing of textiles, thereby facilitating the finishing of things.
After cleaning and drying, textiles remain soft and pleasant to the touch, do not lose their original shape and retain their color saturation. The use of modern equipment and solvents makes it possible to optimize technological processes at the enterprise and improve the quality of services provided.
Easy maintenance and convenient operation

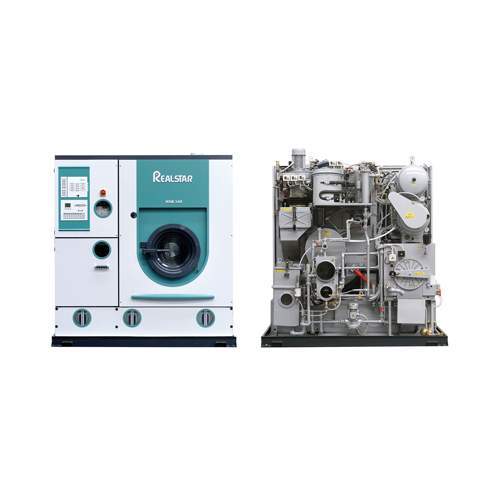

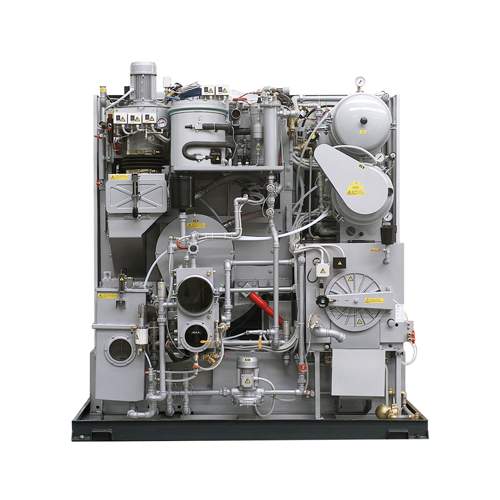

REALSTAR's professional equipment is easy to install, operate, and maintain. Thanks to the well-thought-out arrangement of all components, the presence of shock absorbers and solid side panels, the HSK series machines can be placed sideways against the wall. All the components that need to be checked regularly are in the back. The manufacturer has provided quick access to them, which greatly simplifies daily maintenance.
The machine is controlled using a computer based on Pulsar D601 microprocessors. The new generation Combi System allows you to create and modify 20 dry cleaning and maintenance programs. For each operating mode, the specialist can set:
- the dosage of chemicals,
- solvent temperature,
- motor speed,
- drying temperature and other parameters.

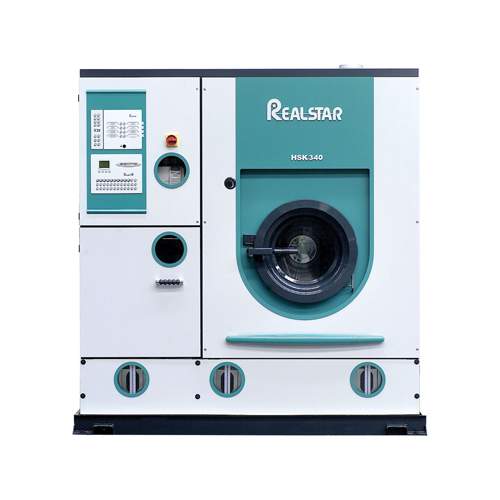

Everything necessary for operation and control is located on the front panel. It is easy for operators to work with the equipment. Memory cards are also included in the delivery package, on which you can record the configured operating mode programs and transfer them to other machines installed at the enterprise.
Innovative technologies
HSK dry cleaning machines are manufactured using modern technology. They provide a solvent reuse system. Its principle of operation:
- during the first phase of distillation and during the drying process, solvents are formed,
- The chemicals are mixed in a separate separator,
- the resulting mixture is used during the first wash.
The moisture level in the system is controlled by automation. When water is detected, the electronic probe opens the drain valve. The liquid formed during the separation process enters the second water separator. This system:
- optimizes the consumption of cleaning products,
- minimizes the risk of bacterial formation in the circuit,
- eliminates the appearance of unpleasant odors in the car.
The HSK series machines also have a fractional distillation system using vacuum technology. It includes sensors that monitor the boiling of solvents and prevent the appearance of foam. Electronic sensors prevent solvent contamination and help maintain high-quality dry cleaning.
Optimal drying of laundry
Textiles can be dried after dry cleaning in HSK sprung machines. For this purpose, the equipment provides:
- air circulation system with large turbines and refrigeration unit;
- the electronic control system DRY CONTROL ELETTRONICO, which prevents solvent overspending and ensures high drying quality.
The refrigeration unit consists of three separate sections. It is quickly disassembled thanks to the AEROQIUP connectors, which greatly facilitates and accelerates the cleaning of the condensation battery and the evaporator battery.
STANDARD EQUIPMENT
- Safety tray
- Locking signal and hatch lock
- DANFOSS Water saving valve
- Cleaning motor INVERTER
- Self-cleaning Electronic Drying Control Dry Control
- Double water separator for contact water
- Automatic Detergent Dosing Pump
- Fractional distillation by vacuum technology
- Connector for connecting a nitrogen cylinder
- Continuous or periodic distillation
- A trap equipped with an automatic drying device
- Self-cleaning water separator
- The noise-absorbing casing of the refrigerator compressor
- A microprocessor-based computer
- Up to 20 cleaning programs
- Choosing one of the 14 machine control languages
- Electronic temperature control
- Wide range of filtering options
- Large loading hatch
- Automatic wall washing of the distiller
- Large size Double Air Filter
- Electric Steam Distiller
- Distiller with pressurized water
- Illuminated distiller viewing window
- Large-size ventilation turbine
- Refrigeration unit with three separable sections for quick and convenient maintenance.
Stainless steel components
- The distiller
- Distiller Condenser
- The trap
- Contact water separator
- The second water separator
- Solvent Filters
- Drum
- Air contour
Additional options
- Automatic sludge discharge from the distiller
- Distiller Cleaning Scraper
- Sludge collection can with a set of connecting elements
- Built-in air compressor
- POLAR SYSTEM – Solvent cooling with freon
- WATER COOLER – Cooling the solvent with water
- Condensate drain devices
- Automatic start/stop of steam supply to the distiller
- DOOR LIGHT – The system of LED illumination of a loading hatch
- Nozzle for feeding chemical additives
- Automatic impregnation system
- A second pump for dosing chemical additives
- Self-cleaning air filter
- SPRY JET – a high-pressure cleaning system
- Stainless steel solvent tanks.
