STEFAB Washing Machine processor

We live in a modern world in which everyone is freely controlled by a computer, tablet and smartphone. So the equipment has long tried on modern electronics. Toggle switches, mechanical timers, and selectors have been replaced by microprocessors with beautiful screens. But is it worth considering the equipment from the point of view of a modern gadget? And is it so convenient to use a delicate touchscreen in a real laundry room? And how much will it cost to repair if it is damaged?

An important component of a modern washing machine is its control processor. The consumer qualities of the car as a whole largely depend on it. A "stupid" processor will never be able to fully realize the potential of the hardware.

When choosing management systems, Stefab, a leading Indian manufacturer of laundry equipment, adheres to a strategy of reasonable sufficiency and continuity. Why chase after new-fangled large displays, touchscreens, and touch buttons if everything you really need in a laundry room is implemented by a proven design over the years? Laundry equipment is not a fashionable gadget!

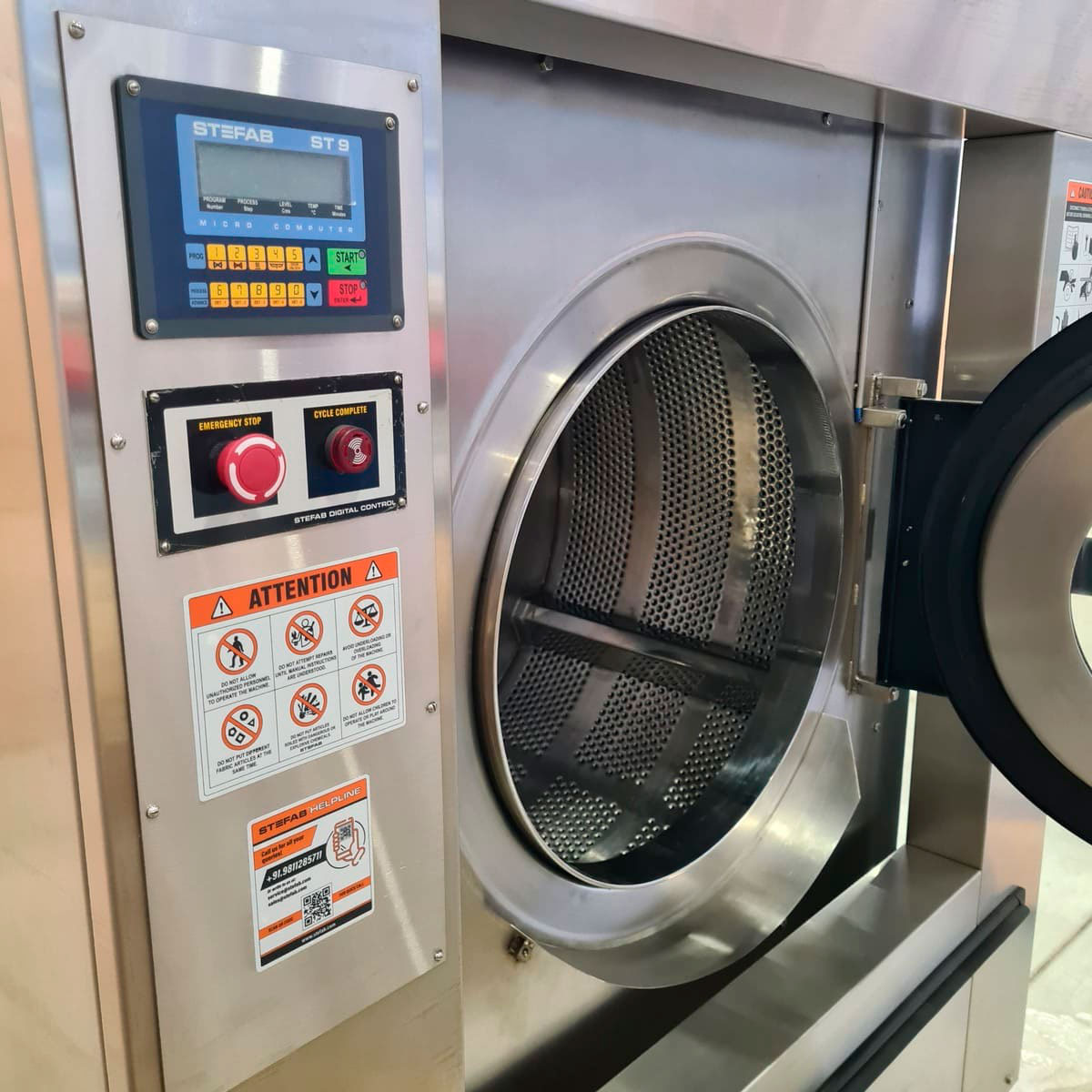

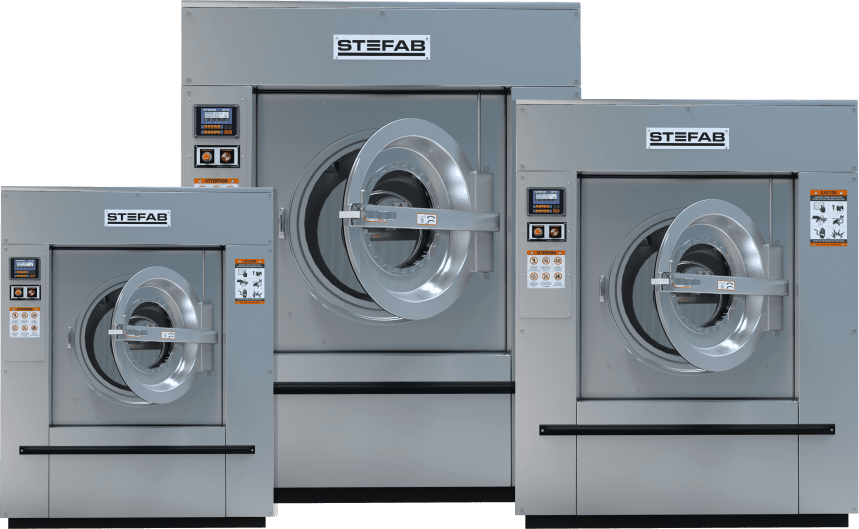

Let's take a closer look at the ST9 processor of Stefab industrial washing machines of the AX and barrier BX series. What can he do?

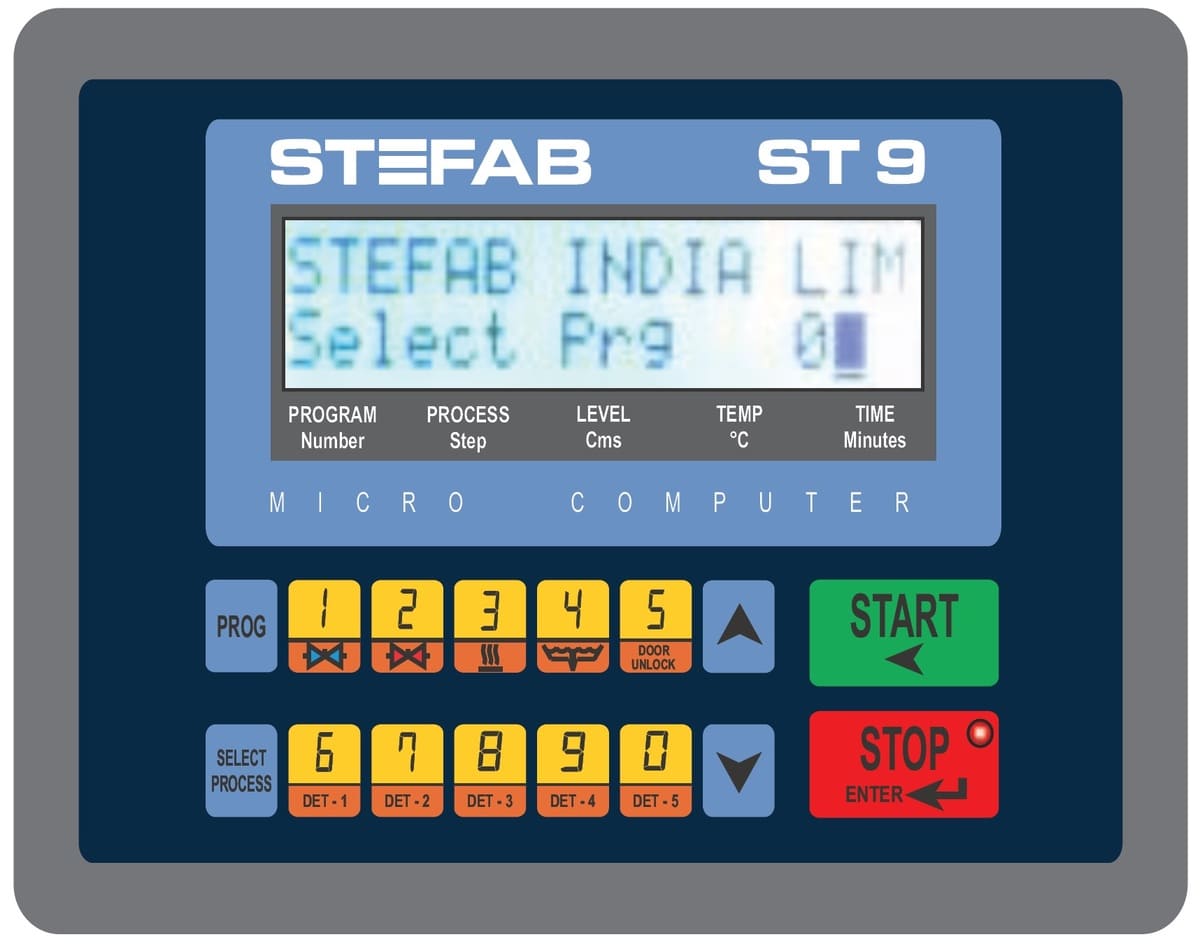

The main features of the ST9

• Two-line alphanumeric LCD display.
• Sixteen control buttons with mnemonic function signatures (two fixed functions per button), additional LED indication of the current state of the machine.
• There are 99 freely programmable programs in total. Of these, 16 are pre-installed. Each program can have up to 50 steps.
• Management of manual use of up to six drugs. Powder, liquid, gel—like form - the actual amount is determined by the dispenser design of a particular washing machine.
• Control of automatic dosing of liquid detergents — six control levels, sufficient for all dosing stations.

Configuration

The ST9 processor has 40 settings for the washing machine operation. Among them are the parameters of the actual configuration of the equipment: for example, the number of filling valves of the machine (for connecting hot, soft water and reuse water) and drain valves (the second and third for reuse of water and/ or heat recovery), the cycle of rotation of the drum during washing (duration of direct and reverse rotation and pauses), the number of dispensers cleaning products.

Others are safety parameters: the maximum time for filling, heating, and draining water, the minimum and maximum safe levels, the time for arranging (balancing) laundry before pressing, and so on. And the parameters that determine the algorithm for executing washing programs: temperature hysteresis, calibration of the temperature sensor, accurate filling of water, temperature control with simultaneous filling of cold and hot water, the time of the sound signal, the number of attempts to arrange laundry, allowing the machine operator to change programs and work in manual mode, etc.

Programming

To understand the manufacturability of the ST9 processor, it is necessary to mention that it supports functions such as water intake with or without drum rotation, thermal stop, chemical dosing when a set water level is reached, a set water temperature or when water is set, the ability to set the speed of rotation of the drum not only during spin, but also during washing.

All programs are freely programmable. You can add (up to 50) and delete program steps, or change any of the step parameters. In other words, the Stefab washing machine's ST9 processor can do everything you need to make your equipment work economically, quickly, and use any modern washing and water-cleaning technology.

Let's add to this that, unlike many modern processors with large screens and virtual buttons, it is characterized by proven reliability, unpretentiousness, ease of use and low cost (as a spare part).
